1.使用场景

Fabric区块链网络一个channel即一个记账本, 在很多业务场景,一个记账本的数据自身组织可以读写,也可以提供给其它组织只读,部分读或部分写。数据隔离使用channel是粗粒度的,private data私有数据是fabric 1.2引入, 是为了在更细的粒度上控制数据访问。

2.如何使用私有数据?

以fabric-sample/chaincode/marble02_private弹珠游戏为例.

(1)文件collections_config.json

policy定义谁可以持久化(写)数据(符合policy的); requiredPeerCount定义私有数据传播到给多少个peer节点; blockToLive定义私有数据以区块的形式会被持久化多久,如果不想被清理, 配置为0; memberOnlyRead定义true时则强制指定组织(根据policy确定)的客户端才能读取数据(设置为false会咋样?都不能读?还是所有都能读?)。

[
  {
       "name": "collectionMarbles",
       "policy": "OR('Org1MSP.member', 'Org2MSP.member')",
       "requiredPeerCount": 0,
       "maxPeerCount": 3,
       "blockToLive":1000000,
       "memberOnlyRead": true
  },

  {
       "name": "collectionMarblePrivateDetails",
       "policy": "OR('Org1MSP.member')",
       "requiredPeerCount": 0,
       "maxPeerCount": 3,
       "blockToLive":3,
       "memberOnlyRead": true
  }
]

定义两种私有数据类型 collectionMarbles的采访策略是Org1的成员或 Org2的成员都具有读写权限。 collectionMarblePrivateDetails的采访策略是Org1的成员具有读写权限。

私有数据设计思路是拆分数据, 公有的数据提取出来设置什么人可读写, 私有的提取出来让部分的人可读写。 跟我们平常说设置文件权限, 谁可读谁可写有些不一样。

policy首先是保证持久化的写权限, 数据要同步对应peer的记账本才行, peer节点没这些数据就谈不上读了。

(2)chaincode如何读写私有数据

marble的名称,颜色,大小和归属人对于org1和org2都开放 // Peers in Org1 and Org2 will have this private data in a side database

type marble struct {
  ObjectType string `json:"docType"`
  Name       string `json:"name"`
  Color      string `json:"color"`
  Size       int    `json:"size"`
  Owner      string `json:"owner"`
}

但marble的价格Org1才可以采访

// Only peers in Org1 will have this private data in a side database
type marblePrivateDetails struct {
  ObjectType string `json:"docType"`
  Name       string `json:"name"`
  Price      int    `json:"price"`
}

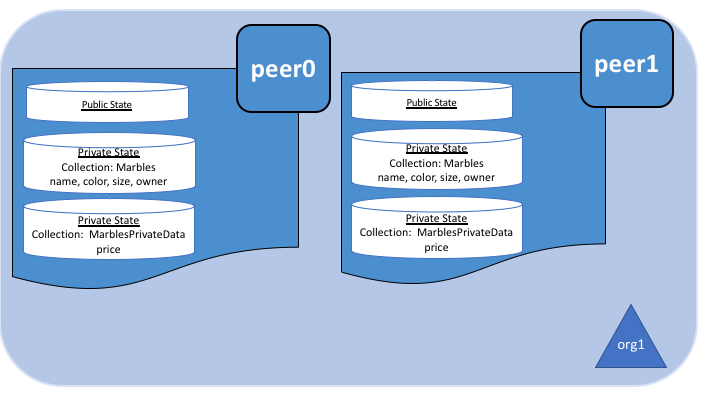

Org1节点数据的分布, 实际用到是side database边库来实现私有数据, 共有的状态还是一个库, marble基本属性一个私有库, 价格一个私有库。 私有数据

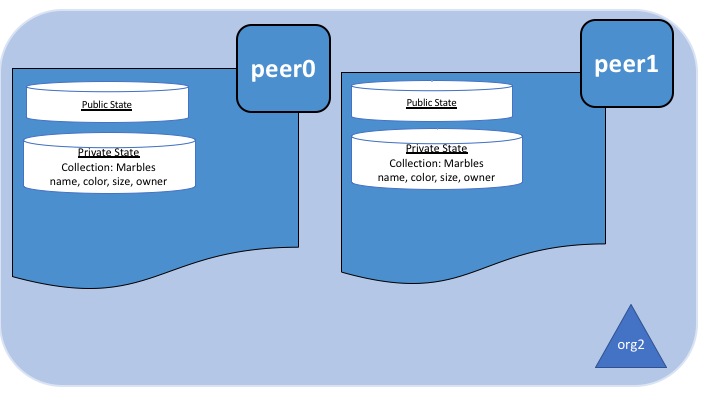

Org2只能采访公共库,marble基本属性库, 没有价格私有库数据 私有数据

直接上链码好了.

先调用initMarble初始化数据,链码初始化时设置的背书策略应该是Org1MSP或者Org2MSP

// export MARBLE=$(echo -n "{\"name\":\"marble1\",\"color\":\"blue\",\"size\":35,\"owner\":\"tom\",\"price\":99}" | base64)
// peer chaincode invoke -C mychannel -n marblesp -c '{"Args":["initMarble"]}' --transient "{\"marble\":\"$MARBLE\"}"

transientMap可以传入json数据, 也算是一种args, 这里应该需要用Org1MSP的节点, 因为分拆保存为两种私有数据。

// ============================================================
// initMarble - create a new marble, store into chaincode state
// ============================================================
func (t *SimpleChaincode) initMarble(stub shim.ChaincodeStubInterface, args []string) pb.Response {
	var err error

	type marbleTransientInput struct {
		Name  string `json:"name"` //the fieldtags are needed to keep case from bouncing around
		Color string `json:"color"`
		Size  int    `json:"size"`
		Owner string `json:"owner"`
		Price int    `json:"price"`
	}

	// ==== Input sanitation ====
	fmt.Println("- start init marble")

	if len(args) != 0 {
		return shim.Error("Incorrect number of arguments. Private marble data must be passed in transient map.")
	}

	transMap, err := stub.GetTransient()
	if err != nil {
		return shim.Error("Error getting transient: " + err.Error())
	}

	if _, ok := transMap["marble"]; !ok {
		return shim.Error("marble must be a key in the transient map")
	}

	if len(transMap["marble"]) == 0 {
		return shim.Error("marble value in the transient map must be a non-empty JSON string")
	}

	var marbleInput marbleTransientInput
	err = json.Unmarshal(transMap["marble"], &marbleInput)
	if err != nil {
		return shim.Error("Failed to decode JSON of: " + string(transMap["marble"]))
	}

	if len(marbleInput.Name) == 0 {
		return shim.Error("name field must be a non-empty string")
	}
	if len(marbleInput.Color) == 0 {
		return shim.Error("color field must be a non-empty string")
	}
	if marbleInput.Size <= 0 {
		return shim.Error("size field must be a positive integer")
	}
	if len(marbleInput.Owner) == 0 {
		return shim.Error("owner field must be a non-empty string")
	}
	if marbleInput.Price <= 0 {
		return shim.Error("price field must be a positive integer")
	}

	// ==== Check if marble already exists ====
	marbleAsBytes, err := stub.GetPrivateData("collectionMarbles", marbleInput.Name)
	if err != nil {
		return shim.Error("Failed to get marble: " + err.Error())
	} else if marbleAsBytes != nil {
		fmt.Println("This marble already exists: " + marbleInput.Name)
		return shim.Error("This marble already exists: " + marbleInput.Name)
	}

	// ==== Create marble object, marshal to JSON, and save to state ====
	marble := &marble{
		ObjectType: "marble",
		Name:       marbleInput.Name,
		Color:      marbleInput.Color,
		Size:       marbleInput.Size,
		Owner:      marbleInput.Owner,
	}
	marbleJSONasBytes, err := json.Marshal(marble)
	if err != nil {
		return shim.Error(err.Error())
	}

	// === Save marble to state ===
	err = stub.PutPrivateData("collectionMarbles", marbleInput.Name, marbleJSONasBytes)
	if err != nil {
		return shim.Error(err.Error())
	}

	// ==== Create marble private details object with price, marshal to JSON, and save to state ====
	marblePrivateDetails := &marblePrivateDetails{
		ObjectType: "marblePrivateDetails",
		Name:       marbleInput.Name,
		Price:      marbleInput.Price,
	}
	marblePrivateDetailsBytes, err := json.Marshal(marblePrivateDetails)
	if err != nil {
		return shim.Error(err.Error())
	}
	err = stub.PutPrivateData("collectionMarblePrivateDetails", marbleInput.Name, marblePrivateDetailsBytes)
	if err != nil {
		return shim.Error(err.Error())
	}

	//  ==== Index the marble to enable color-based range queries, e.g. return all blue marbles ====
	//  An 'index' is a normal key/value entry in state.
	//  The key is a composite key, with the elements that you want to range query on listed first.
	//  In our case, the composite key is based on indexName~color~name.
	//  This will enable very efficient state range queries based on composite keys matching indexName~color~*
	indexName := "color~name"
	colorNameIndexKey, err := stub.CreateCompositeKey(indexName, []string{marble.Color, marble.Name})
	if err != nil {
		return shim.Error(err.Error())
	}
	//  Save index entry to state. Only the key name is needed, no need to store a duplicate copy of the marble.
	//  Note - passing a 'nil' value will effectively delete the key from state, therefore we pass null character as value
	value := []byte{0x00}
	stub.PutPrivateData("collectionMarbles", colorNameIndexKey, value)

	// ==== Marble saved and indexed. Return success ====
	fmt.Println("- end init marble")
	return shim.Success(nil)
}

读取私有数据, readMarblePrivateDetails应该要Org2MSP才能读取
// ===============================================
// readMarble - read a marble from chaincode state
// ===============================================
func (t *SimpleChaincode) readMarble(stub shim.ChaincodeStubInterface, args []string) pb.Response {
	var name, jsonResp string
	var err error

	if len(args) != 1 {
		return shim.Error("Incorrect number of arguments. Expecting name of the marble to query")
	}

	name = args[0]
	valAsbytes, err := stub.GetPrivateData("collectionMarbles", name) //get the marble from chaincode state
	if err != nil {
		jsonResp = "{\"Error\":\"Failed to get state for " + name + "\"}"
		return shim.Error(jsonResp)
	} else if valAsbytes == nil {
		jsonResp = "{\"Error\":\"Marble does not exist: " + name + "\"}"
		return shim.Error(jsonResp)
	}

	return shim.Success(valAsbytes)
}

// ===============================================
// readMarblereadMarblePrivateDetails - read a marble private details from chaincode state
// ===============================================
func (t *SimpleChaincode) readMarblePrivateDetails(stub shim.ChaincodeStubInterface, args []string) pb.Response {
	var name, jsonResp string
	var err error

	if len(args) != 1 {
		return shim.Error("Incorrect number of arguments. Expecting name of the marble to query")
	}

	name = args[0]
	valAsbytes, err := stub.GetPrivateData("collectionMarblePrivateDetails", name) //get the marble private details from chaincode state
	if err != nil {
		jsonResp = "{\"Error\":\"Failed to get private details for " + name + ": " + err.Error() + "\"}"
		return shim.Error(jsonResp)
	} else if valAsbytes == nil {
		jsonResp = "{\"Error\":\"Marble private details does not exist: " + name + "\"}"
		return shim.Error(jsonResp)
	}

	return shim.Success(valAsbytes)
}

更多细节参考官方文档 https://hyperledger-fabric.readthedocs.io/en/release-1.4/private_data_tutorial.html
